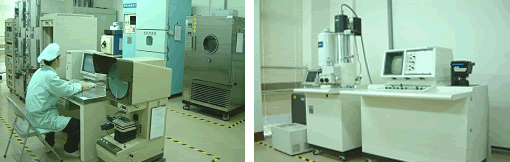

| High Reliability Test Specification |
No. |
TEST ITEM |
TEST CONDITION |
LOT QUALITY LEVEL |
REFERENCED DOCUMENT |
|||||
1 |
TEMPERATURE CYCLING(T.C.T) |
Ta=-30∮5°C Ta=ROOM TEMP Ta=+150∮5°C Ta=ROOM TEMP FOR 5 CYCLE |
40 MIN10 MIN40 MIN10 MIN | LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
MIL-STD-750C METHOD 1051.2 |
||||
2 |
HIGH TEMPERATURESTORAGE LIFE (H.T.S.L) |
Ta=+150∮5°C TESTING TIME 168HRS / 250HRS / 500HRS |
LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
MIL-STD-750C METHOD 1031.4 |
|||||
3 |
HIGH TEMPERATUREREVERSE BIAS (H.T.R.B) |
Ta=+150∮5°C VR=0.8VR (CUSTOMER SPEC.) TESTING TIME 48HRS / 96HRS / 168HRS / 250HRS / 500HRS |
LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
MIL-STD-750C METHOD 1038.4 |
|||||
4 |
CONTINUE FORWARDOPERATING LIFE(C.F.O.L) |
Ta=55°C∮5°C POWER 60HZ I=IO∮10% TESTING TIME 168HRS / 250HRS / 500HRS |
LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
MIL-STD-750C METHOD 1027.1 |
|||||
5 |
THERMAL SHOCK (T.S.T) |
HOT TANK T=100°C t=10 min COLD TANK T=0°C t=5 min 10 CYCLES TIME BETWEEN TRANSFERRING DONOT EXCEED 10 SECOND |
LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
MIL-STD-750C METHOD 1056.1 |
|||||
6 |
PRESSURE COOKER (P.C.T) |
Ta=121°C P=1.2Kg/cm2 TIME=8HRS |
LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
MIL-STD-19500E APPENDIX C |
|||||
7 |
INTERMITTENT FORWARDOPERATING LIFE (I.F.O.L) | POWER 60HZ Ta=55°C∮5°C I=IO*1.5 POWER ON 10SEC/POWER OFF 17SECTESTING TIME 5000 CYCLES |
LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
MIL-STD-750C METHOD 1036.3 |
|||||
8 |
HIGH TEMPERATUREREVERSE LEAKAGE (H.T.I.R) | Ta=150∮5°C TIME FOR EATING=0.5HRS UNDER 1min READING UNDER TEST Ta=150°C READING |
LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
||||||
9 |
FORWARD SURGE CURRENT | SQ WAVE OR SINE WAVE IFSM=DATA SHEET SPEC. TIME=6/8.3Msec T=1 CYCLE |
LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
MIL-STD-750C METHOD 4066.2 |
|||||
10 |
HUMIDITY | Ta=85°C∮3°CRH=85% ∮3%TESTING TIME168HRS / 250HRS / 500HRS | LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY |
MIL-STD-750C METHOD 1021.1 |
|||||
11 |
SOLDERABILITY | TEMPERATURE OF SOLDER POT=235∮5°C TIME FOR DIPPING FULLS=5-10SEC TIME FOR DIPPING IN SOLDER=5∮1SECDIPPING DEPTH =1~1.5mmBELOW BODY FOR ONE CYCLE |
LTPD 10 Ss=32 ACCEPT FOR 0 FAILURE ONLY 1 |
MIL-STD-750C METHOD 208 |
|||||
12 |
LEAD PULL | MAXIMUM INSTANTANEOUS FORCE WHILEPULLED OUT WHILE PULLED OUT
|
LTPD 10 Ss=22 ACCEPT FOR 0 FAILURE ONLY 1 |
MIL-STD-750C METHOD 2036.3 |
|||||
